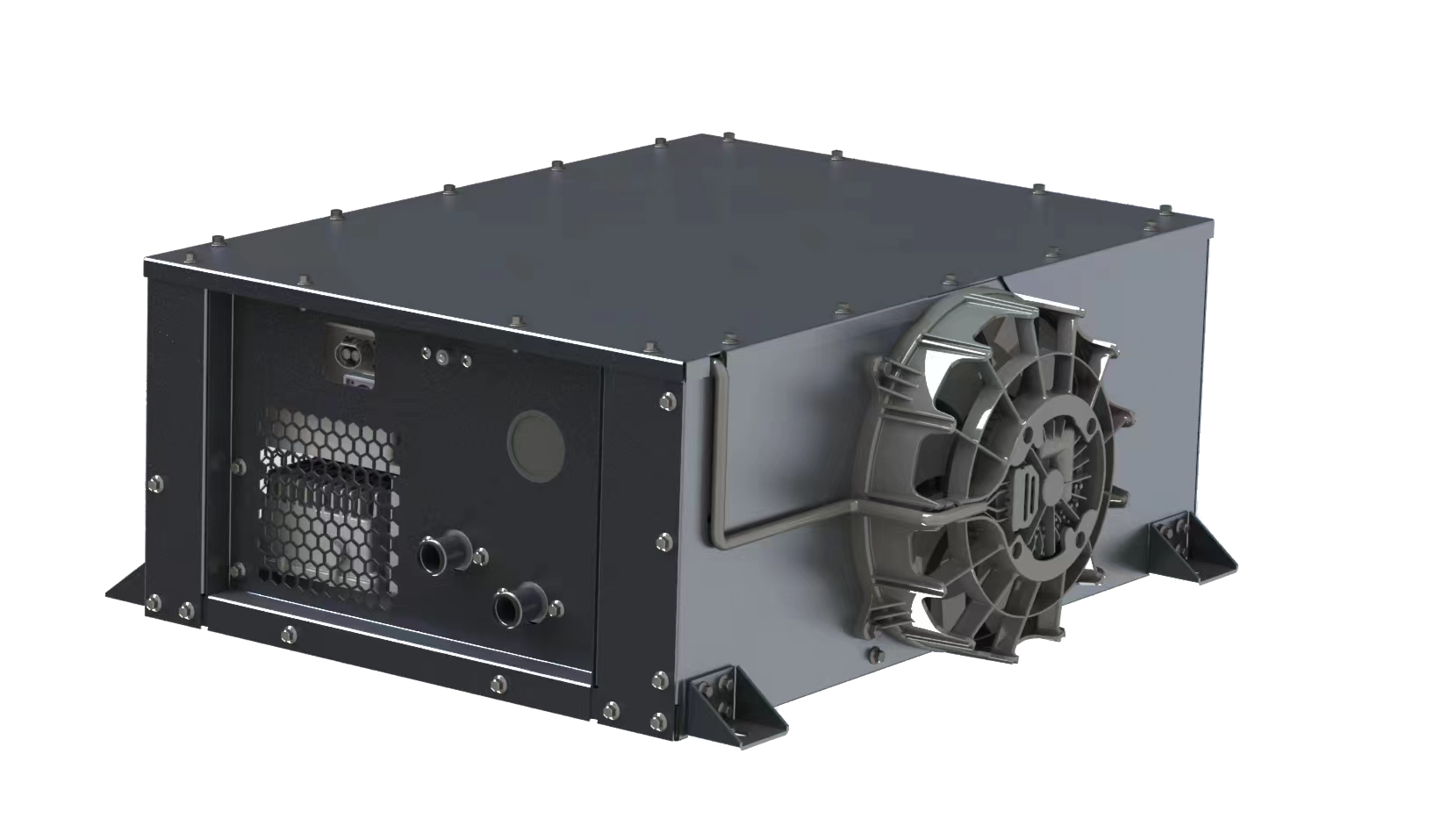

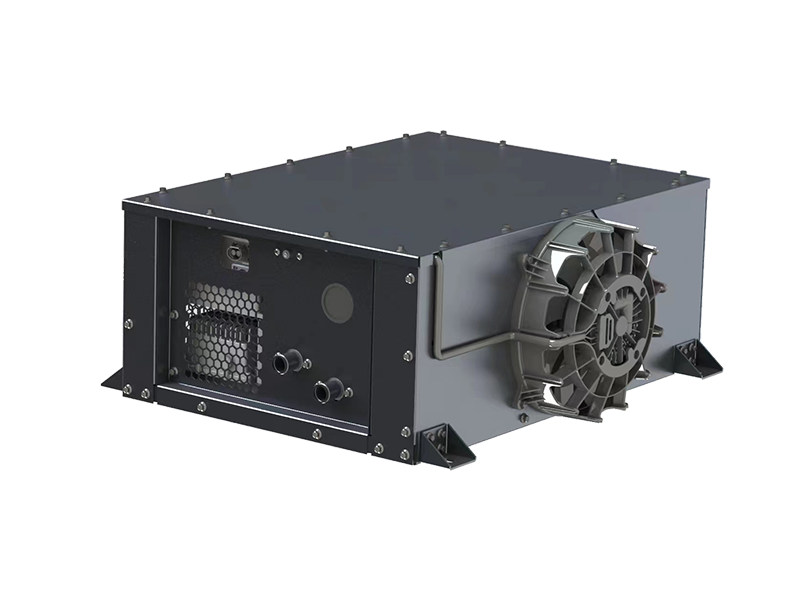

2~6KW Liquid Cooled Unit
Category： Integrated Thermal Management System
Product Details
The Yusenn 2~6KW Liquid cooled units are used to control the temperature of key components such as batteries, motors, and electronic controls. Effectively prevent local overheating or overcooling of the battery pack, ensuring that the operating temperature is within the optimal range; Heat dissipation at high temperatures avoids performance degradation, while preheating at low temperatures improves charge and discharge efficiency. Prevent the risk of thermal runaway and extend battery life.
Automatic OperationThe Liquid Cooled Unit automatically performs various operational modes such as cooling and heating in response to the BMS's operational commands. |
Infinite speed regulationThe condensing fan has stepless speed regulation, which can automatically match the condensing fan speed according to the ambient temperature and exhaust pressure. |
Multi working modesEquipped with standby, cooling, heating, and self cycling working modes. |
Variable frequency compressorBy using a variable frequency compressor, precise control of water temperature can be achieved. |
More intelligentCapable of achieving network control; Adopting CAN2.0 communication; Capable of self diagnosis of unit faults. |
Compressor protectionThe pressure switch ensures that the air conditioner operates within the normal pressure range, effectively protecting system safety; Delayed start can avoid damage to the compressor caused by frequent starts. |
Applicable vehicle models ▶
|
|
|
New energy engineering vehicle |
Energy storage |
Technical data ▶
| Liquid cooled units Model | 2~6KW Liquid cooled units |
| Cooling capacity (kw) | 2~6 |
| Heating capacity（KW） | Optional |
| Voltage - High Voltage（V） | DC400V~DC750 |
| Voltage - Low Voltage（V） | DC24V（ 18V-32V）【Powered by its own DCDC】 |
| Low voltage demand power（W） | 600W |
| Low voltage power distribution DC-DC | 0.8kw【Comes with DCDC】 |
| Circulating built-in water pump | 12m&1500l/h【Stepless speed regulation】 |
| Outlet water temperature (°) | 15~35 |
| Secondary Refrigerant Type | 50%VV Ethylene glycol aqueous solution |
| refrigerant | R134a |
| Condensed air volume（ m³/H） | 1000 |
| Dimensions （MM） | 702*547 *210【customizable】 |
| Weight（KG） | ≤40kg |
