Product Details

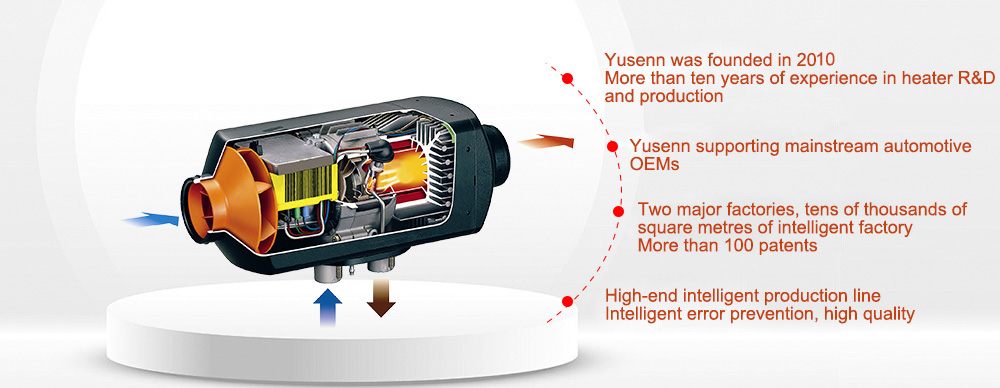

The Yusenn Fuel Air Heater directly heats the air inside the car, allowing for quick heating. With low fuel consumption and extremely low power consumption, the Yusenn Fuel Air Heater can provide long-term heating even when the vehicle is turned off, as it does not rely on the engine. The Yusenn Fuel Air Heater uses a brushless motor that not only has a long lifespan but is also ultra quiet. Very suitable for heating trucks, vans, RVs, etc. for long periods of time at night.
Compact designHigh heating power, compact design. |
6000HBrushless motor, quieter and more durable, with a lifespan of up to 6000 hours. |
Patent designThe shell design has obtained a patent certificate and uses environmentally friendly, high temperature resistant, flame-retardant materials for greater safety.Simple operation：The rotary switch is easy to operate and has infinite speed regulation. |
High quality oil pumpThe oil pump has a delicate oil volume and is ultra quiet. |
Plateau version up to 5500 metersThe plateau version can be used up to 5500 meters and can also be used in non plateau areas. It automatically recognizes the height and adjusts the working mode. |
Quick troubleshootingThe rotary switch has a fault display function, which can identify faults and perform corresponding troubleshooting without connecting to the maintenance computer. |
Vehicle CAN communicationCan also be integrated into on-board systems via CAN interfaces. |
Applicable vehicle models ▶
 |
 |
 |
 |
 |
 |
 |
 |
Technical parameters ▶
| Air Heater Model | DA2 | DA4 | DA4G | |||
| Fuel | Diesel | Diesel | Diesel | |||
| Voltage | V | 12 | 24 | 12 | 24 | 24 |
| Heating capacity | kW | 0.85-2.2 | 0.85-2.2 | 1.6-4.0 | 1.6-4.0 | 1.6-4.0 |
| Electrical power consumption | W | max. 34 | max. 55 | max. 55 | ||
| Fuel consumption | l/h | 0.1-0.28 | 0.2-0.5 | |||
| Operating temperature Heater | °C | -40 to +40 | -40 to +40 | -40 to +40 | ||
| Working altitude | M | Up to 1500 meters | Up to 1500 meters | Up to 5500 meters | ||
| Weight | kg | 2.8 | 4.5 | 4.5 | ||
| Main dimensions LxWxH | mm | 310.5*115*122 | 371*141*146 | 371*141*146 | ||
| Order number | 161-10000 | 161-20000 | 162-10000 | 162-20000 | 162-20000G | |
For the standard additional list, please click the "File Download" above to obtain.
Keywords： Fuel Air Heater
